Shale Shakers and Screens for Drilling Solids Control
In the process of oil and gas drilling, shale shakers and screens are indispensable core equipment and key components in the solids control system. Drilling shakers perform primary separation of cuttings and solid particles in the drilling fluid through screens, directly affecting the subsequent mud purification efficiency, equipment operational stability, and drilling cost control.

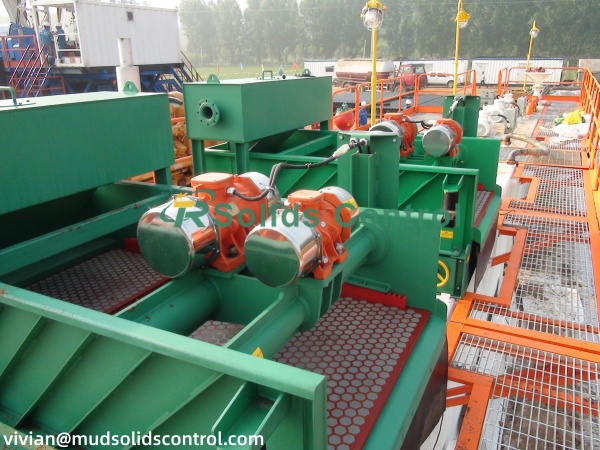

Shale shakers are the first processing equipment in the drilling solid control system, mainly used to separate drill cuttings from the drilling mud. Screens are the core consumable components of the shaker, and their structure and mesh specifications directly determine the screening effectiveness. In actual drilling operations, the shaker and screens usually work together as an integrated system to complete the primary purification of the drilling mud.
The main functions of a drilling vibrating screen include:
- – Separating large solid particles from the drilling fluid
- – Reducing the sand content and solid load of the mud
- – Relieving the working pressure on desanders, desilters, and centrifuges
- – Improving the reuse rate of drilling fluid
A stably operating shale shaker helps maintain mud performance and prolongs the service life of drill bits and pump equipment.
Depending on the structure and usage scenarios, common vibrating screen meshes include:

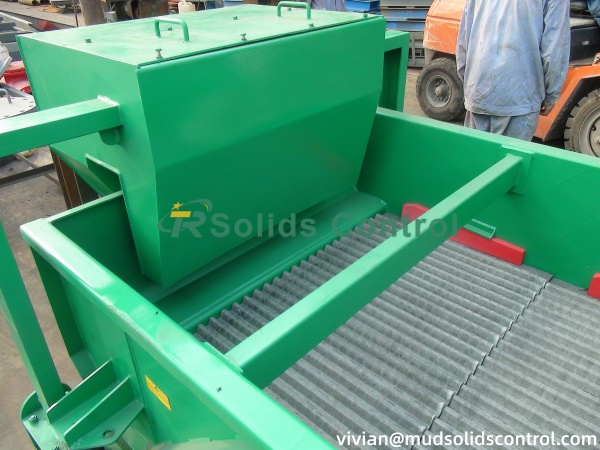

- Composite frame screen: lightweight, corrosion-resistant, easy to replace, with strong sealing
- Stainless Steel screen: high structural strength, suitable for high vibration conditions, with relatively stable service life
Mesh sizes generally range from API 20 to API 325, and users can select according to formation conditions, mud properties, and processing volume.
When selecting shale shakers and screens, it is recommended to focus on the following factors:
- – Matching the drilling fluid flow rate with the processing capacity
- – Vibration mode (linear motion or elliptical motion)
- – Screen compatibility specifications and installation method
- – Performance and structural stability of the vibration motor
- – Ease of on-site maintenance and replacement
A reasonable selection helps improve screening efficiency and reduce operating costs.
As a professional solid control equipment supplier in China, TR Solid Control Equipment has long focused on the design and manufacture of shale shakers and matching screens. TR offers a variety of drilling shaker and screen solutions, widely used in onshore drilling, offshore platforms, and trenchless engineering projects.
TR Solid Control Equipment emphasizes structural stability, screen compatibility, and on-site practicality, and is able to provide customers with suitable solid control configuration recommendations based on different operating conditions.
Shale shakers and screens play a fundamental and crucial role in the solid control system of drilling. By reasonably selecting the type of shaker and screen, not only can the efficiency of mud processing be improved, but the overall drilling operation process can also be optimized. With the development of drilling technology, the structure and performance of shakers and screens are continuously being optimized, and their application value will continue to increase.
