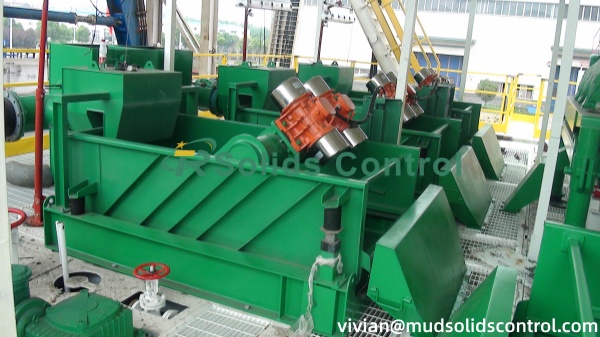

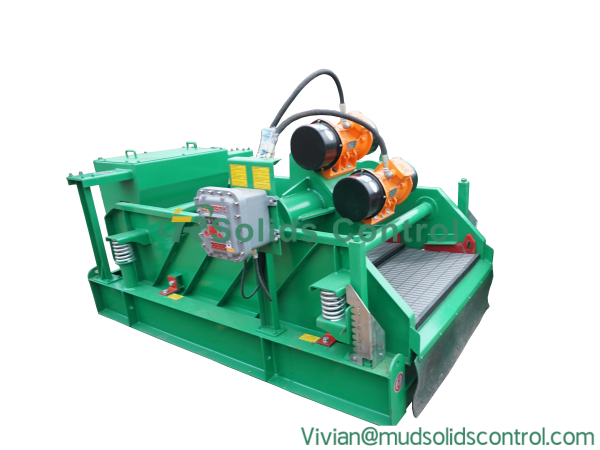

The shale shaker is designed for efficient liquid-solid separation. Its main components include the screen box, vibration motor, damping system, and frame. Once started, the motor drives the screen deck in high-frequency linear or elliptical motion. When drilling fluid with cuttings is fed onto the screen, vibration quickly separates solids from fluid. Fluid and fine particles pass through the mesh to the next stage, while larger cuttings are conveyed off the screen for discharge.

TR solids control has optimized vibration trajectory and excitation force based on fluid viscosity and solids content, making the screening action better suited to actual drilling conditions. This prevents fluid pooling and screen blinding, improving both separation efficiency and operational stability.

TR Solids Control designs its shale shakers to meet varied drilling conditions—from onshore and offshore drilling to shale gas and geothermal operations—by balancing practicality, adaptability, and ease of maintenance.

• Dual Vibration Modes: Switchable linear and elliptical trajectories: linear for fast, high-volume/low-viscosity fluids; elliptical for thorough screening of high-viscosity, high-solids mud, preventing accumulation and improving separation.
• Durable, Quick-Change Screens: Screens in polyurethane, high-manganese, or 304 stainless steel, in 20-200 mesh, match cuttings size for accuracy and life. A quick-release clamp allows tool‑free screen changes, minimizing downtime.
• Corrosion-Resistant & Damped Construction: The screen box is welded Q345B steel with heavy-duty anti-corrosion coating; frame and fasteners use 304 stainless steel to resist mud acids and saline conditions. Composite damping springs absorb vibration, reduce noise, and extend equipment life.
• Live Adjustable Parameters: Excitation force (5–8g) and screen-deck angle (–2° to +5°) can be adjusted without stopping, letting operators optimize settings in real time based on fluid viscosity, solids, and flow rate.

Drilling fluid treatment is a staged purification system involving shale shakers, desanders, desilters, centrifuges, and mud cleaners. Only through seamless, coordinated operation can deep fluid purification be achieved.

As the core front-end equipment in this system, TR Solids Control shale shakers are designed for synergy with downstream units. Their underflow outlet and flow rate are precisely matched to same-series desanders and desilters, allowing fluid to move directly to the next stage without path adjustments, boosting overall system efficiency.

TR also offers custom system configurations based on your fluid-treatment scale and needs, integrating shakers with other equipment, optimizing layout and flow to create a compact, efficient system adaptable to various wellsite spaces and operational demands.

As a core drilling fluid processing unit, the shale shaker performance directly impacts overall treatment efficiency, fluid recycling, and drilling cost-effectiveness. TR Oilfield Technology continuously optimizes shaker design and manufacturing to deliver stable screening performance across varied drilling conditions, providing reliable support for efficient, safe operations.

As a professional drilling fluid equipment manufacturer, TR also offers full-cycle services—from selection and commissioning to operation and maintenance—ensuring worry-free, efficient use of your fluid-treatment equipment.
