A mud shale shaker is the primary solids control device used in drilling fluid circulation systems. As the first-stage separation equipment, the mud shale shaker removes large cuttings and unwanted solids from drilling mud, ensuring cleaner fluid and stable drilling performance. Understanding how a mud shale shaker works and how to choose the right model is essential for efficient mud management.

What Is a Mud Shale Shaker?

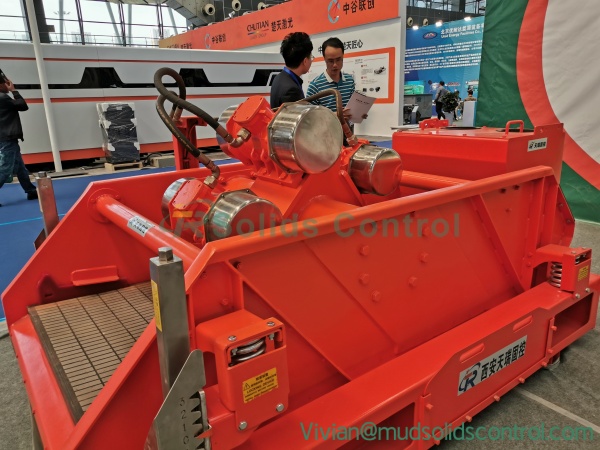

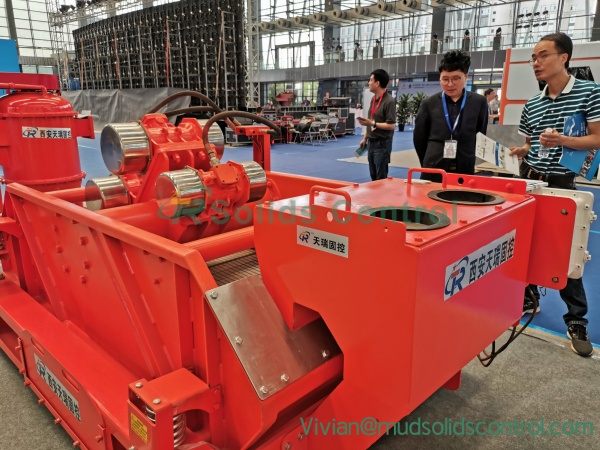

A mud shale shaker is a vibrating screen machine designed to separate solid particles from drilling fluid using vibration force and screen mesh.

Its core components include: Vibration motors; Screen panels (composite or steel frame); Screen deck; Feeding box; Discharge chute; Base and shock absorbers.

The shaker ensures continuous removal of solids and prevents high solids content from damaging pumps or causing drilling complications.

Working Principle of Mud Shale Shaker

The working mechanism is based on vibration-driven screening:

• Step 1 — Vibration Force Generation: Dual motors create strong linear or elliptical motion.
• Step 2 — Mud Distribution: Drilling mud enters the screen surface through a feed box.
• Step 3 — Screening Process: Liquid passes through the mesh. Solids remain on the screen surface and move toward the discharge end.
• Step 4 — Clean Mud Recycling: Treated mud flows into the tank below and returns to the well.

Main Functions of a Mud Shale Shaker

• Removes harmful solids: Reduces solids concentration and stabilizes rheological properties.
• Protects downstream equipment: Prevents blockages and excessive wear in desanders, desilters, and centrifuges.
• Improves drilling speed: Cleaner mud helps maintain optimal drilling conditions.
• Reduces mud cost: Efficient screening lowers the consumption of chemicals and additives.
• Supports environmental compliance: Reduces waste volume and facilitates recycling.

Types of Mud Shale Shakers

• Linear Motion Shale Shaker: Strong vibration; High handling capacity; Suitable for oil & gas drilling.
• Balanced Elliptical Motion Shale Shaker: Smoother vibration; Better for fine mesh; Ideal for stable drilling and HDD.
• Double-layer Mud Shale Shaker:Two screening decks; Higher separation efficiency; Suitable for projects requiring fine and coarse screening simultaneously.
• High-G Drying Shaker: Used to reduce oil or water on cuttings; Often applied in waste management systems.

A mud shale shaker plays a crucial role in maintaining drilling fluid quality and ensuring efficient solids control. By understanding its functions, working principles, and selection criteria, operators can significantly improve drilling performance and reduce operational costs.
