Linear vs. Balanced Elliptical Motion Shale Shakers: Choosing the Right Fit
When it comes to solids control in drilling operations, the choice between a linear motion shale shaker and a balanced elliptical motion shale shaker can significantly impact efficiency, mud quality, and overall project costs. Both shaker types are essential for separating drilling cuttings from drilling fluids, but their design and performance vary depending on the application.

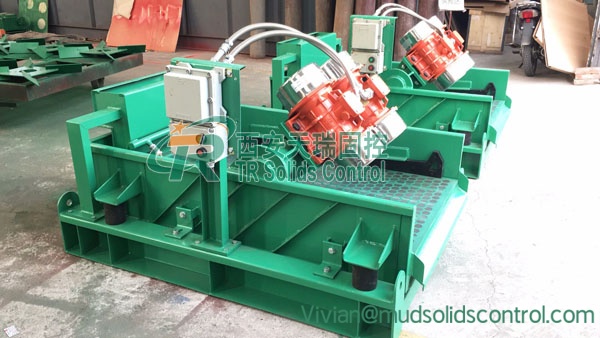

Linear Motion Shale Shakers
Linear motion shale shakers are ideal for high-volume drilling projects. They deliver strong vibration and high G-force, making them effective for fast solids separation and heavy cuttings loads. Commonly used in oil & gas drilling, HDD, and large construction projects, they ensure maximum fluid recovery and lower mud costs.This aggressive motion delivers:
High capacity processing – ideal for oil & gas wells with heavy drilling volumes.
Efficient solids removal – maintains drilling fluid properties.
Durability under harsh conditions – performs well in demanding environments.
These shakers are the go-to solution for deep wells, large-scale oilfields, and projects where maximum solids control efficiency is required.

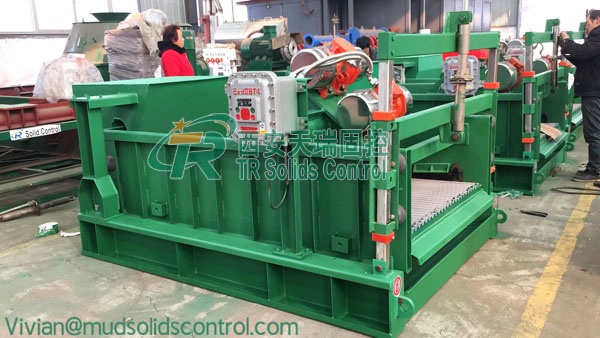

Balanced Elliptical Motion Shale Shakers
Balanced elliptical motion shale shakers use a gentler elliptical vibration pattern. This design reduces screen wear, minimizes fluid loss, and is particularly suitable for drilling conditions that require finer solids separation or extended screen life. They are often preferred in environmentally sensitive projects where efficient cuttings handling is essential. Benefits include:
Lower G-force impact – reduces wear on screens and equipment.
Better mud recovery – minimizes fluid loss, saving costs.
Ideal for fine solids – works well in low-volume drilling or environmentally sensitive sites.
These shakers are often chosen for projects where fluid conservation is a priority or where drilling conditions are less aggressive.
Choosing the Right Fit
The decision between linear vs. balanced elliptical motion shale shakers depends on project requirements. If your drilling operation demands high-volume solids control, linear motion shakers are the best choice. For operations focused on mud recovery and cost savings, balanced elliptical shakers may be more effective.
Both shale shaker designs play a vital role in modern drilling. By understanding the differences between linear and balanced elliptical motion shale shakers, drilling contractors can choose the right fit to optimize performance, reduce waste, and improve overall efficiency.
