Linear Motion Shale Shaker for Efficient Drilling Mud Treatment
A Linear Motion Shale Shaker:https://www.xatrsy.com/shaleshaker/linear-motion-shale-shaker.html is one of the core components of modern solids control systems. It is widely used in oilfield drilling, HDD projects, and other mud treatment applications. With its strong linear vibration force and high processing capacity, the Linear Motion Shale Shaker plays a key role in improving drilling mud quality and ensuring smooth drilling operations.

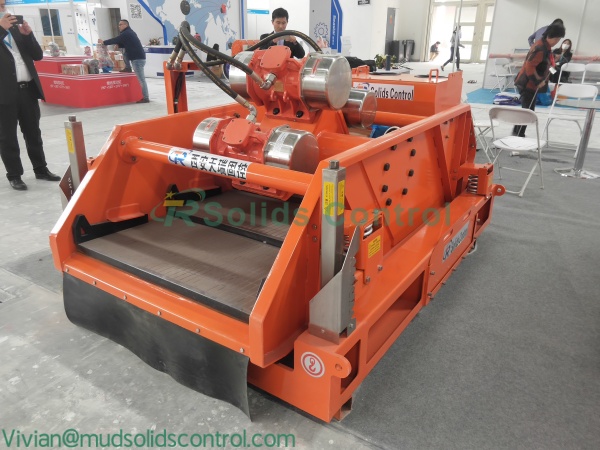

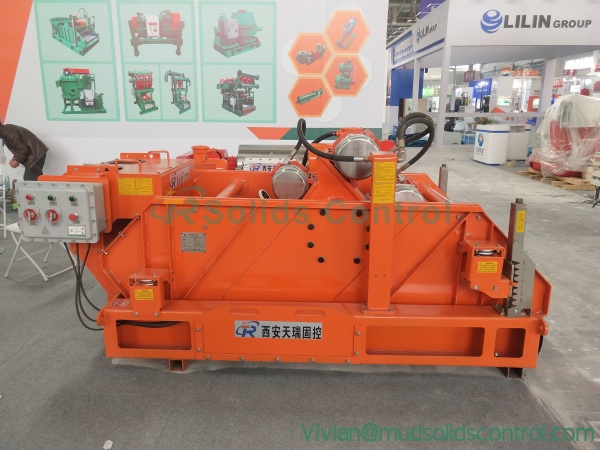

What Is a Linear Motion Shale Shaker?
A Linear Motion Shale Shaker uses two vibration motors rotating in opposite directions to create a straight-line vibration trajectory. This linear motion conveys cuttings rapidly toward the discharge end, helping the shaker handle large flow rates and heavy drilling mud. Key Features:①Stable linear vibration ②Fast solids conveying ③High G-force output ④Suitable for water-based and oil-based mud. Compared with elliptical or circular motion shakers, the linear type offers stronger processing capability.
Working Principle of a Linear Motion Shale Shaker
- Step 1: Mud Distribution: Drilling mud enters the feeder and spreads evenly onto the screen surface.
- Step 2: Linear Vibration: Dual motors create strong linear motion, shaking solids off the fluid.
- Step 3: Screening & Separation: Liquid passes through the screen mesh. Solids travel forward and discharge at the front outlet.
- Step 4: Clean Mud Recovery: Clean mud flows into the tank below for reuse in the drilling circulation system.
This continuous separation ensures drilling efficiency and reduces equipment wear.
Advantages of Using Linear Motion Shale Shakers
- High Processing Capacity: Linear vibration handles larger flow rates than other vibration modes.
- Better Cuttings Dryness: Stronger vibration improves solid discharge and reduces fluid loss.
- Wide Application Range: Works well with high-viscosity and heavy mud.
- Easy Screen Replacement: Quick-lock screen system reduces downtime.
- Stable Performance in Harsh Conditions: Suitable for deep drilling, high solids mud, and fast drilling speed.
TR Solids Control Linear Motion Shale Shaker Models
- TRZS703 Series: 3-panel shaker; High capacity (up to 240 m³/h); Widely used in medium and large drilling rigs.
- TRZS584 Series: Compact 4-panel design; Suitable for small to medium drilling projects.
- Custom Designs: Optional explosion-proof motors; Adjustable deck angle; Different screen mesh options (API 20–325).
How to Select a Linear Motion Shale Shaker
- Required flow rate
- Mud type (WBM/OBM)
- Screen type and mesh selection
- Available deck angle adjustment
- Site installation space
- Power and voltage requirements
TR Solids Control can provide customized solutions based on your drilling needs.
The Linear Motion Shale Shaker is a powerful and reliable tool for mud treatment in drilling and industrial separation systems. Its strong vibration, high capacity, and consistent separation performance make it essential for modern solids control operations.
