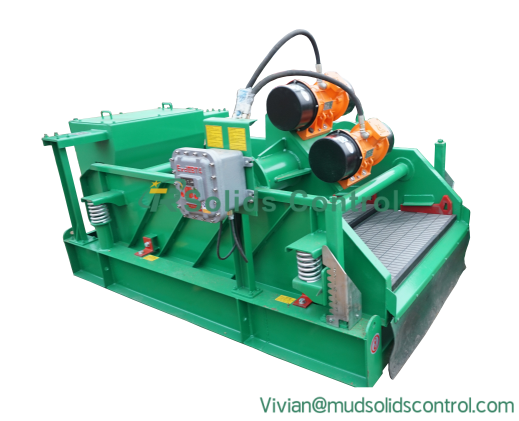

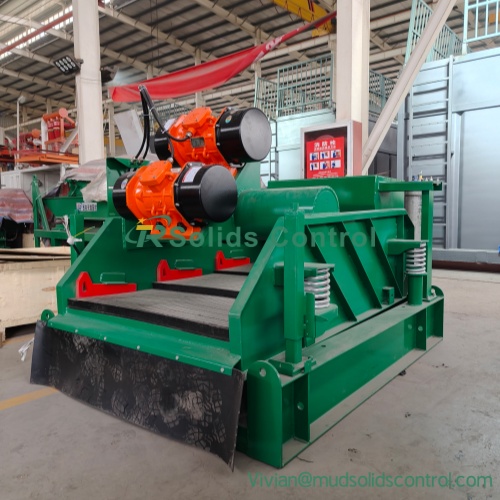

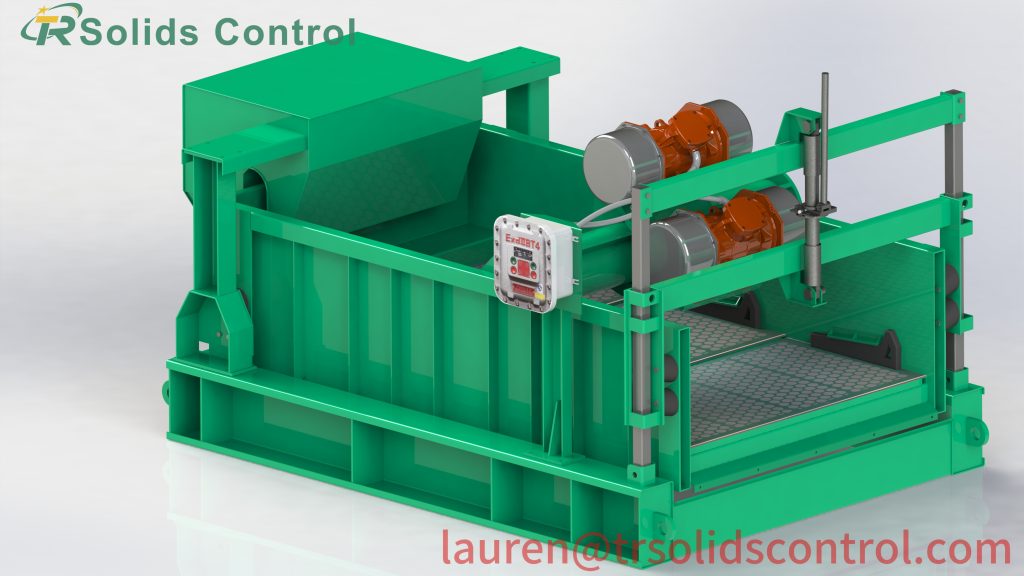

Shale Shaker — Essential Equipment for Drilling Mud Solids Control
The shale shaker:https://www.xatrsy.com/shaleshaker.html is the primary solids control device used in drilling and mud recycling systems. It removes large cuttings and unwanted particles from drilling fluid through a combination of vibration force and fine screen mesh. By maintaining clean and stable drilling mud properties, the shale shaker improves drilling efficiency and protects downstream equipment such as desanders, desilters, and centrifuges. TR Solids Control offers a full range of shale shakers designed for oil and gas drilling, HDD, tunneling, and mining applications.
How a Shale Shaker Works
- Drilling mud enters the feeding box.
- Dual vibration motors create linear or elliptical motion.
- Mud spreads across the screen surface.
- Liquid phase passes through the mesh openings.
- Solid cuttings move toward the discharge end and exit the shaker.
- Clean mud flows to the tank below and is reused in the drilling process.
The efficiency depends on vibration G-force, screen mesh size, deck angle, and mud properties.
Key Features of a Shale Shaker
- High G-force vibration for consistent separation.
- Adjustable deck angle for different drilling conditions.
- Quick-lock screen system for fast replacement.
- Composite frame screens for longer service life.
- Optional linear motion or balanced elliptical motion.
- Simple maintenance and stable performance.
Types of Shale Shakers
- Linear Motion Shale Shaker: Suitable for large solids volume and heavy mud systems.

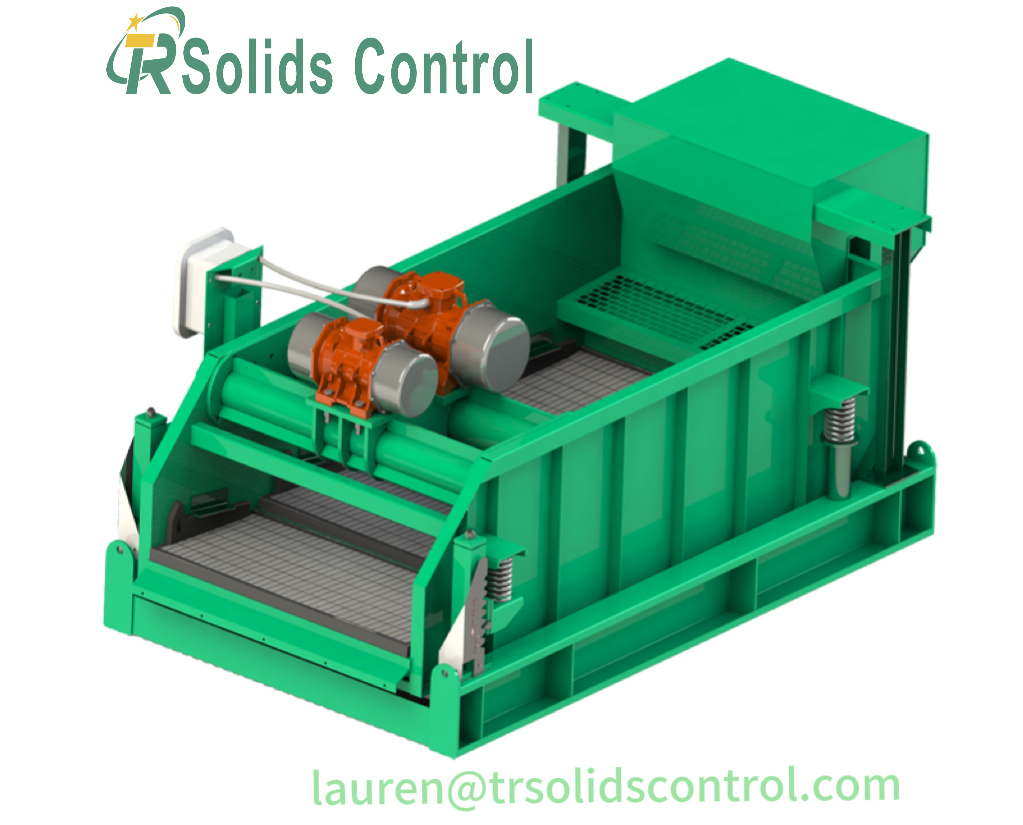

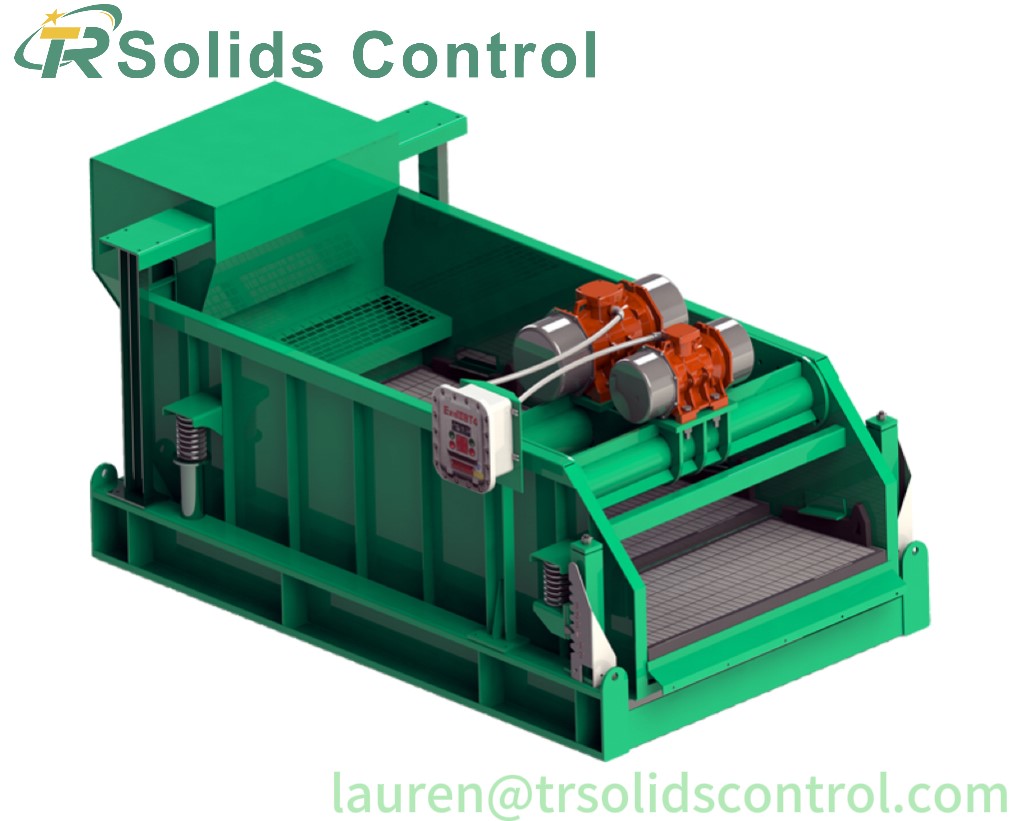

- Balanced Elliptical Motion Shale Shaker: Offers smooth operation and improved fine-screen performance.
- Double-Layer Shale Shaker:https://www.xatrsy.com/shaleshaker/Dual-Deck-Shale-Shaker.html: First layer for coarse separation, second layer for fine screening; ideal for high-demand mud recycling.
- Mongoose Shale Shaker (Compatibility Type): Designed with screen systems compatible with Mongoose-style screen panels.
Applications of Shale Shakers
- Oil & gas drilling rigs
- Horizontal directional drilling (HDD)
- Tunnel boring and piling projects
- Mining and mineral processing
- Environmental mud treatment
- Industrial wastewater separation
TR Solids Control provides customized shaker configurations for different industries and project sizes.
Benefits of Using a High-Quality Shale Shaker
- Reduces mud cost
- Improves drilling rate of penetration
- Protects mud pumps and hydrocyclones
- Minimizes waste and supports environmental compliance
- Enhances overall mud system efficiency
The shale shaker is the foundation of an efficient solids control system. Its ability to separate particles from drilling mud ensures smoother operations, reduced wear on equipment, and lower overall drilling costs. With reliable vibration motors, durable screen structure, and customizable design, TR Solids Control provides shale shakers suitable for a wide range of drilling and industrial projects.

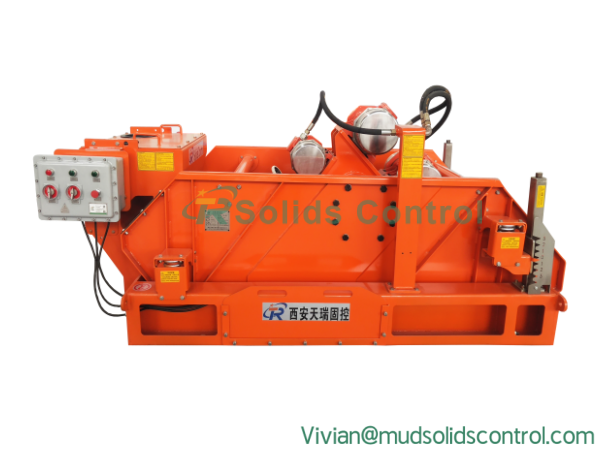

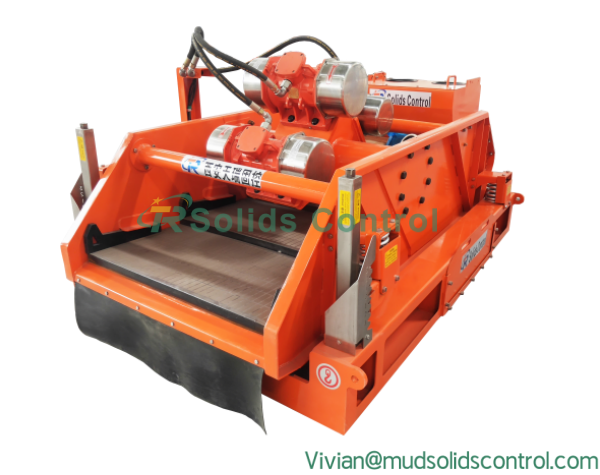

Mongoose Shale Shaker: Core Features, Benefits & Oilfield Applications
The Mongoose shale shaker: https://www.tr-shale-shaker.com/mongoose-shale-shaker/—renowned in oilfield solids control—boasts stable performance, flexible configuration, and efficient mud separation. Widely used in onshore/offshore drilling, it’s compatible with composite frame screens for reliable separation and long service life. Understanding its structure, working principle, and application range aids in selecting the right equipment for diverse drilling conditions.
Structural Features of the Mongoose Shale Shaker
- Double-Deck or Single-Deck Screen System: Depending on the model, the shaker can be configured as a single-deck or dual-deck design for higher processing capacity and improved fine solids removal.
- Composite Frame Shaker Screens: Compatible with high-quality composite screens that provide excellent filtration efficiency, long lifespan, and resistance to corrosion and wear.
- Vibratory Motors with Adjustable Settings: The dual vibration motors deliver strong linear motion, and operators can adjust vibration intensity according to drilling mud properties.
- User-Friendly Tensioning System: Quick-lock or wedge-type screen fixing mechanisms allow fast replacement and reduce non-productive time during drilling operations.
- Rugged Base and Isolation System: Designed to minimize vibration transfer and ensure stable operation in various drilling environments.
Working Principle of the Mongoose Shale Shaker
- Drilling mud enters the shaker through the flowline.
- Vibration motors generate linear motion, spreading mud evenly across the screen surface.
- Solids are transported forward and discharged, while clean mud passes through the mesh and flows to the tank below.
- The shaker continuously removes cuttings, improving mud quality and protecting downstream equipment such as desanders, desilters, and centrifuges.
Advantages of the Mongoose Shale Shaker
- High Screening Efficiency: Composite screens and linear motion provide consistent separation of fine and coarse solids.
- Flexible Configuration: Optional dual-deck designs or additional modules improve mud processing performance for different drilling programs.
- Easy Maintenance: Quick screen replacement, simple structure, and robust components reduce maintenance time and cost.
- Compatibility with Industry-Standard Screens: Mongoose screens (API 20–325) are widely available and suitable for a range of drilling mud conditions.
- Stable Performance in Harsh Conditions: The shaker maintains reliable operation even during heavy mud flow, high solids load, or long drilling cycles.
Applications of the Mongoose Shale Shaker
- Oil & gas drilling solids control systems
- Workover and re-entry drilling
- HDD (Horizontal Directional Drilling)
- Mining slurry processing
- Geothermal drilling
- Environmental mud treatment projects

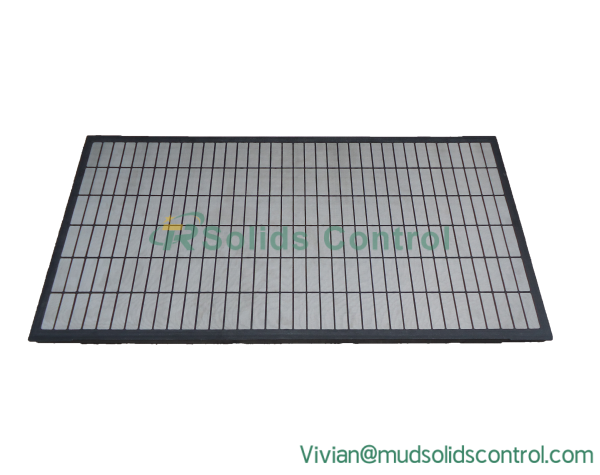

Replacement Screens for Mongoose Shakers
Many operators choose Mongoose-type screens because:
- Composite frame screens extend service life
- Mesh options meet API RP 13C standard
- Excellent resistance to wear, heat, and chemical additives
- Designed for high vibration and high-throughput conditions
TR Solids Control offers Mongoose replacement screens that match original dimensions and performance.
The Mongoose shale shaker remains a widely adopted option in modern drilling solids control systems due to its efficient separation capability, durable structure, and compatibility with composite frame screens. Whether for land rigs, offshore drilling, or HDD applications, it provides a reliable and cost-effective solution for maintaining clean drilling fluids.

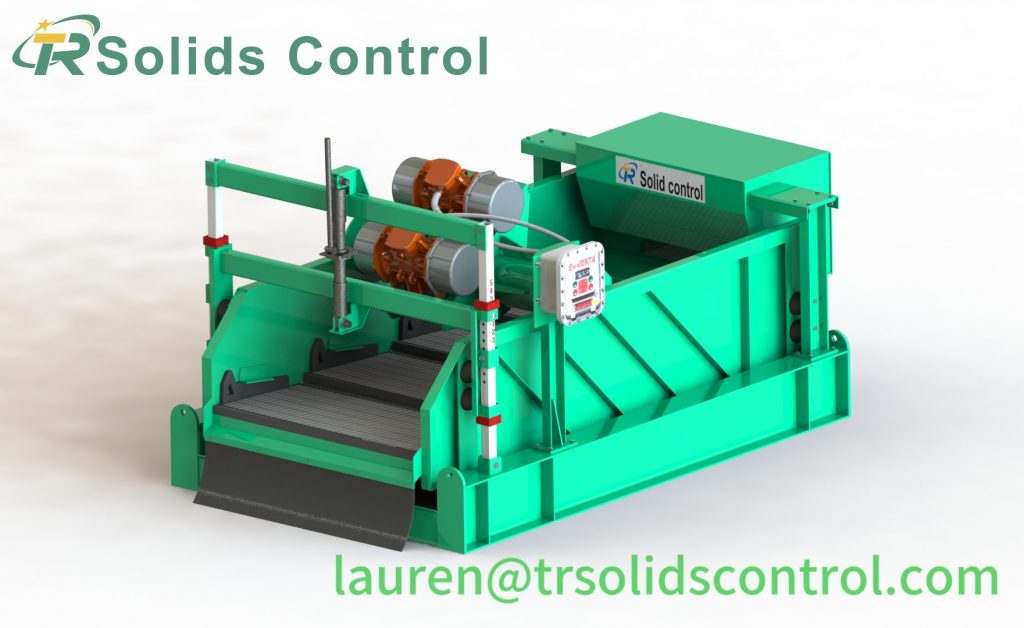

Linear Motion Shale Shaker for Efficient Drilling Mud Treatment
A Linear Motion Shale Shaker:https://www.xatrsy.com/shaleshaker/linear-motion-shale-shaker.html is one of the core components of modern solids control systems. It is widely used in oilfield drilling, HDD projects, and other mud treatment applications. With its strong linear vibration force and high processing capacity, the Linear Motion Shale Shaker plays a key role in improving drilling mud quality and ensuring smooth drilling operations.
What Is a Linear Motion Shale Shaker?
A Linear Motion Shale Shaker uses two vibration motors rotating in opposite directions to create a straight-line vibration trajectory. This linear motion conveys cuttings rapidly toward the discharge end, helping the shaker handle large flow rates and heavy drilling mud. Key Features:①Stable linear vibration ②Fast solids conveying ③High G-force output ④Suitable for water-based and oil-based mud. Compared with elliptical or circular motion shakers, the linear type offers stronger processing capability.
Working Principle of a Linear Motion Shale Shaker
- Step 1: Mud Distribution: Drilling mud enters the feeder and spreads evenly onto the screen surface.
- Step 2: Linear Vibration: Dual motors create strong linear motion, shaking solids off the fluid.
- Step 3: Screening & Separation: Liquid passes through the screen mesh. Solids travel forward and discharge at the front outlet.
- Step 4: Clean Mud Recovery: Clean mud flows into the tank below for reuse in the drilling circulation system.
This continuous separation ensures drilling efficiency and reduces equipment wear.
Advantages of Using Linear Motion Shale Shakers
- High Processing Capacity: Linear vibration handles larger flow rates than other vibration modes.
- Better Cuttings Dryness: Stronger vibration improves solid discharge and reduces fluid loss.
- Wide Application Range: Works well with high-viscosity and heavy mud.
- Easy Screen Replacement: Quick-lock screen system reduces downtime.
- Stable Performance in Harsh Conditions: Suitable for deep drilling, high solids mud, and fast drilling speed.
TR Solids Control Linear Motion Shale Shaker Models
- TRZS703 Series: 3-panel shaker; High capacity (up to 240 m³/h); Widely used in medium and large drilling rigs.
- TRZS584 Series: Compact 4-panel design; Suitable for small to medium drilling projects.
- Custom Designs: Optional explosion-proof motors; Adjustable deck angle; Different screen mesh options (API 20–325).
How to Select a Linear Motion Shale Shaker
- Required flow rate
- Mud type (WBM/OBM)
- Screen type and mesh selection
- Available deck angle adjustment
- Site installation space
- Power and voltage requirements
TR Solids Control can provide customized solutions based on your drilling needs.
The Linear Motion Shale Shaker is a powerful and reliable tool for mud treatment in drilling and industrial separation systems. Its strong vibration, high capacity, and consistent separation performance make it essential for modern solids control operations.

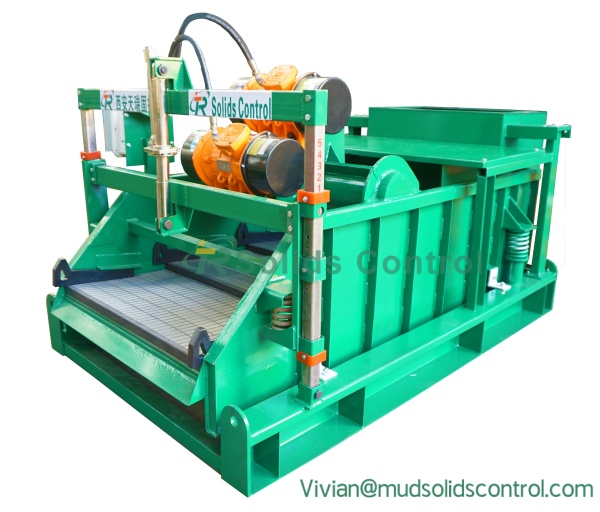

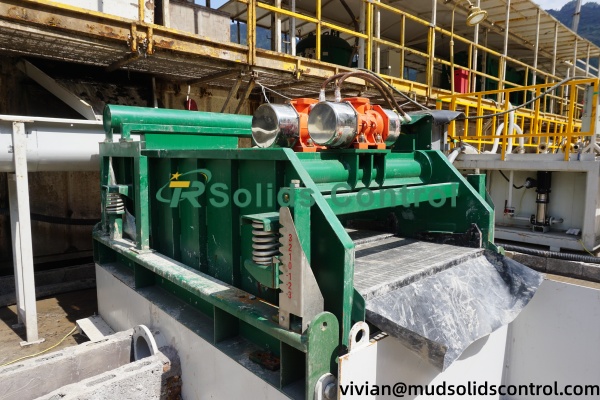

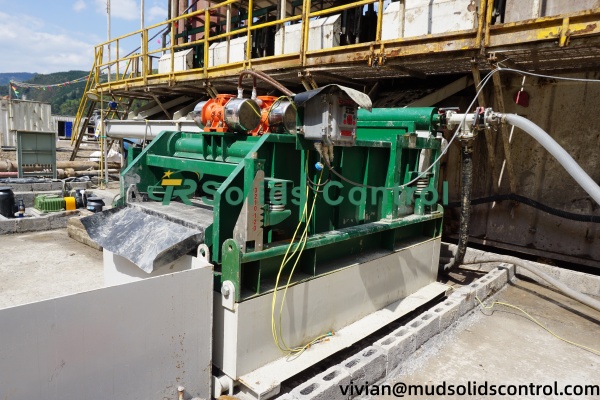

Mud Shale Shaker Overview: Functions, Benefits, and Selection Tips for Solids Control Systems
A mud shale shaker is the primary solids control device used in drilling fluid circulation systems. As the first-stage separation equipment, the mud shale shaker removes large cuttings and unwanted solids from drilling mud, ensuring cleaner fluid and stable drilling performance. Understanding how a mud shale shaker works and how to choose the right model is essential for efficient mud management.
What Is a Mud Shale Shaker?
A mud shale shaker is a vibrating screen machine designed to separate solid particles from drilling fluid using vibration force and screen mesh.
Its core components include: Vibration motors; Screen panels (composite or steel frame); Screen deck; Feeding box; Discharge chute; Base and shock absorbers.
The shaker ensures continuous removal of solids and prevents high solids content from damaging pumps or causing drilling complications.
Working Principle of Mud Shale Shaker
The working mechanism is based on vibration-driven screening:
- Step 1 — Vibration Force Generation: Dual motors create strong linear or elliptical motion.
- Step 2 — Mud Distribution: Drilling mud enters the screen surface through a feed box.
- Step 3 — Screening Process: Liquid passes through the mesh. Solids remain on the screen surface and move toward the discharge end.
- Step 4 — Clean Mud Recycling: Treated mud flows into the tank below and returns to the well.
Main Functions of a Mud Shale Shaker
- Removes harmful solids: Reduces solids concentration and stabilizes rheological properties.
- Protects downstream equipment: Prevents blockages and excessive wear in desanders, desilters, and centrifuges.
- Improves drilling speed: Cleaner mud helps maintain optimal drilling conditions.
- Reduces mud cost: Efficient screening lowers the consumption of chemicals and additives.
- Supports environmental compliance: Reduces waste volume and facilitates recycling.
Types of Mud Shale Shakers
- Linear Motion Shale Shaker: Strong vibration; High handling capacity; Suitable for oil & gas drilling.

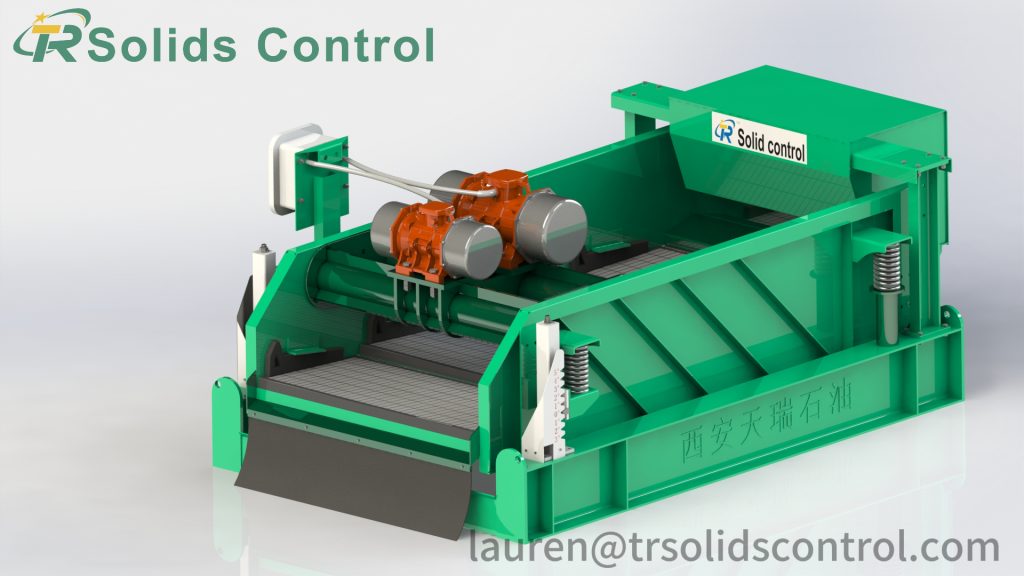

- Balanced Elliptical Motion Shale Shaker: Smoother vibration; Better for fine mesh; Ideal for stable drilling and HDD.
- Double-layer Mud Shale Shaker:Two screening decks; Higher separation efficiency; Suitable for projects requiring fine and coarse screening simultaneously.
- High-G Drying Shaker: Used to reduce oil or water on cuttings; Often applied in waste management systems.
A mud shale shaker plays a crucial role in maintaining drilling fluid quality and ensuring efficient solids control. By understanding its functions, working principles, and selection criteria, operators can significantly improve drilling performance and reduce operational costs.

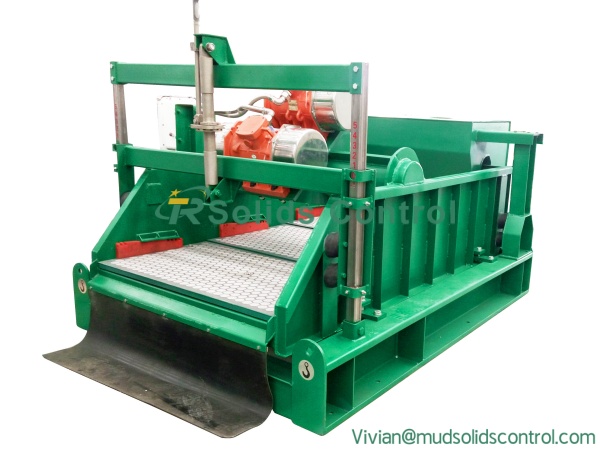

Key Functions of Mud Shale Shaker in Drilling Fluid Treatment Systems
Mud shale shakers—critical first-stage solids control in drilling fluid circulation—remove cuttings to keep mud clean and usable. High-quality models boost drilling efficiency, reduce mud loss, and protect downstream equipment, making them widely used in oil/gas drilling, HDD, tunneling, and other slurry-based projects.
1. Primary Solids Removal
The main function of a mud shale shaker is to separate large solids and cuttings from the drilling fluid immediately after the mud returns from the wellbore. Prevents solids from re-entering circulation. Reduces viscosity and density of drilling fluid. Ensures stable drilling performance. By removing harmful solids early, the shale shaker improves the overall efficiency of the mud system.
2. Protecting Downstream Mud Equipment
When a mud shale shaker removes coarse solids effectively, it reduces the load on other solids control devices such as: Desanders; Desilters; Decanter centrifuges; Mud cleaners. This protection allows downstream equipment to operate efficiently, last longer, and require fewer maintenance cycles.
3. Improving Drilling Fluid Quality
Another key function of mud shale shakers is to maintain the performance of drilling fluid, ensuring proper: Lubrication; Cooling of the drill bit; Wellbore stability; Pressure control. Cleaner drilling mud leads to smoother drilling operations and fewer downhole complications.
4. Reducing Mud Cost and Waste Volume
By efficiently separating solids from the mud, shale shakers help: Reduce the amount of new mud required; Lower waste disposal cost; Extend drilling fluid service life. This contributes to both operational savings and improved environmental compliance.
5. Enhancing Drilling Safety
Removing unwanted cuttings ensures that mud properties remain within safe operating limits.
Stable mud conditions help maintain consistent pressure in the wellbore, reducing risks such as: Formation collapse; Stuck pipe; Uncontrolled fluid entry. This makes the shale shaker a vital safety component in drilling operations.
6. Supporting Multiple Drilling Applications
The functions of mud shale shakers make them suitable for various industries:
- Oil and gas drilling
- Horizontal directional drilling (HDD)
- Tunnel boring machines (TBM)
- Piling construction
- Mining slurry treatment
- Environmental mud recycling
Different industries benefit from custom screen mesh, vibration modes, and structural configurations.
Mud shale shakers are crucial for drilling/slurry processing—separating solids, protecting equipment, improving fluid quality, and reducing environmental impact as the foundation of efficient solids control systems. Choosing a reliable shaker and proper screen configurations ensures stable, economical, and eco-friendly drilling operations.

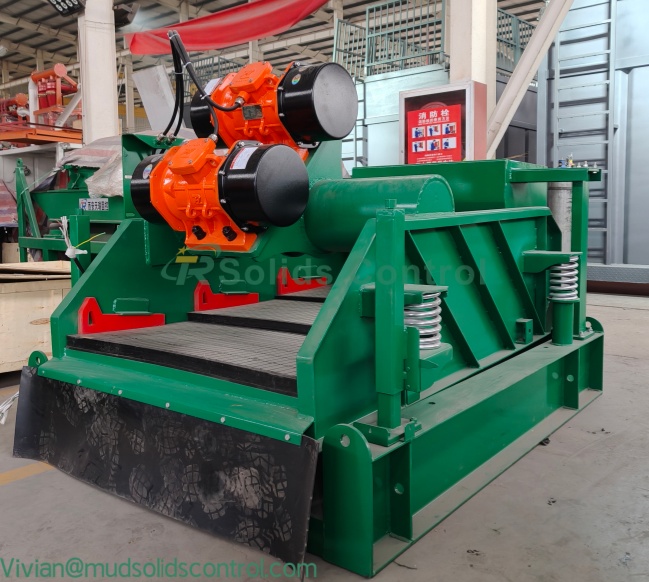

How to Choose the Right Drilling Shale Shaker for Your Solids Control System
Selecting the right drilling shale shaker (critical first-stage solids control device) is key to improving mud quality, cutting costs, and ensuring stable drilling. This guide outlines core selection criteria for drilling contractors/engineers to match mud volume, drilling depth, and working conditions.
1.Determine Required Processing Capacity
The processing capacity should match the actual mud return rate of the drilling operation. Consider: Well depth; Drilling pump flow rate; Mud density & viscosity; Expected drilling cuttings volume.
A shale shaker with insufficient capacity will overload easily, causing fluid loss and poor separation.
2. Choose an Appropriate Vibration Mode
Common vibration types include:
● Linear Motion Shale Shaker: Strong vibration; Fast conveying speed; Suitable for high-volume or weighted mud.
● Balanced Elliptical Motion: Smooth movement; Better performance with fine mesh screens; Suitable for stable drilling conditions.
Matching the vibration mode to mud properties helps achieve efficient separation.

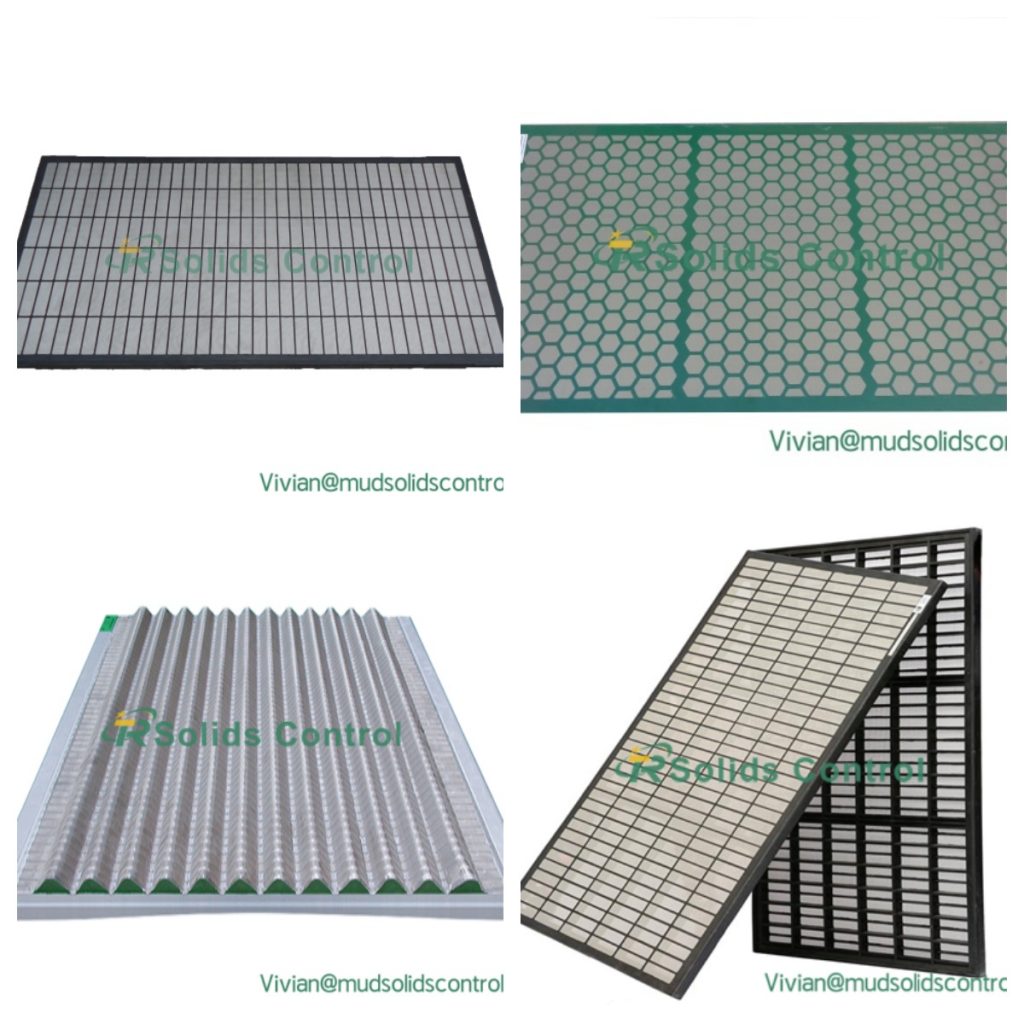

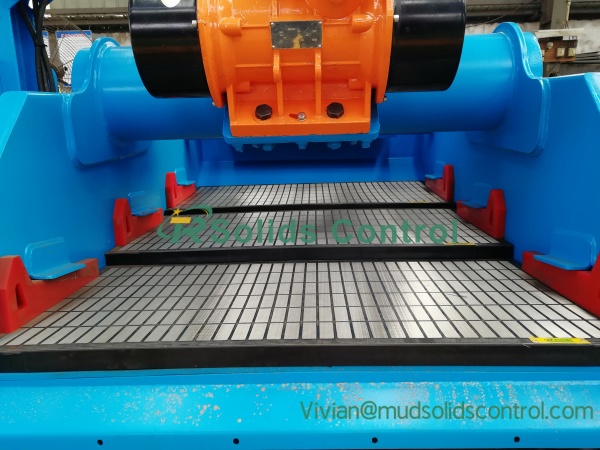

3. Evaluate the Screen Type and API Rating
- Screen frame type: composite frame, steel frame
- Mesh size: API 20–API 325
- Screen layer structure: single, dual, or multi-layer
- Durability and resistance to abrasion
Composite screens generally offer longer service life and better separation performance.
4. Check G-Force and Adjustable Settings
The G-force of the shaker affects its ability to handle high-density and high-viscosity fluids. Higher G-force advantages:
- Faster solids removal
- Better screen cleaning
- Suitable for challenging drilling conditions
Adjustable deck angle and G-force allow operators to fine-tune performance for different mud types.
5. Consider Equipment Structure and Maintenance Needs
A good shale shaker should offer:
- Easy screen replacement
- Stable vibration system
- Durable deck construction
- Reliable electrical control components
- Shock-absorbing spring or rubber supports
Lower maintenance requirements reduce downtime and operational costs.
6. Ensure Compatibility with the Solids Control System
Before final selection, confirm that the shaker matches the system layout: Mud tank dimensions; Flow line height; Hydrocyclone feed arrangement; Space for installation and maintenance. Proper integration ensures smooth mud circulation.
Understanding how to choose a drilling shale shaker helps drilling teams improve solids control performance, reduce mud cost, and maintain safe operations. By considering capacity, vibration mode, screen selection, G-force, and equipment structure, users can select a shaker that fits their drilling conditions effectively.

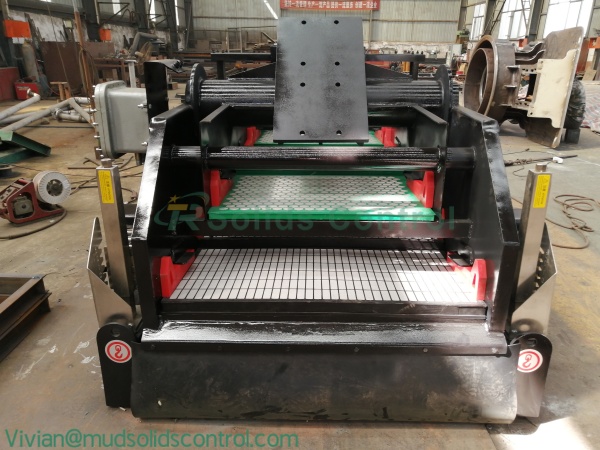

Understanding the Advantages and Applications of Mud Double-Layer Shale Shaker
The mud double-layer shale shaker plays a key role in modern drilling solids control systems. Its two-stage screening design enhances separation efficiency, reduces mud loss, and ensures cleaner drilling fluid for stable drilling operations.
This article explains what a double-layer shale shaker is, how it works, and why many drilling contractors choose this configuration for demanding mud conditions.
1. What Is a Mud Double-Layer Shale Shaker?
A double-layer shale shaker uses two screen decks arranged vertically. The upper deck is used for coarse screening. The lower deck performs fine screening for deeper separation. Compared with a single-layer shaker, this design provides higher processing capacity and improved solids removal efficiency.
2. Working Principle of Double-Layer Structure
The shaker operates based on vibration screening:
- Drilling mud enters the upper screen deck.
- Larger solids are removed, allowing partially cleaned mud to flow to the lower deck.
- Fine particles are separated on the lower mesh.
- Clean mud enters the tank for reuse.
This two-stage system ensures stable, continuous mud recycling.
3. Key Features of a Mud Double-Layer Shale Shaker
- Higher processing capacity due to increased screen area
- Better separation accuracy with dual-screen operation
- Reduced mud loss and improved drilling fluid quality
- Flexible mesh selection for different solids sizes
- Stable performance in heavy mud and high-viscosity drilling conditions
- Compact structure, suitable for limited rig space
Many double-layer shakers also support quick screen replacement to minimize downtime.
4. Applications in Drilling Projects
- Oil and gas drilling
- Horizontal directional drilling (HDD)
- Tunnel boring separated slurry treatment
- Mining and dewatering processes
- Environmental slurry recycling
5. Comparison with Single-Layer Shale Shaker
| Item | Single-Layer | Double-Layer |
| Screen Decks | 1 | 2 |
| Capacity | Standard | Higher |
| Fine Separation | Medium | Strong |
| Mud Loss | Higher | Lower |
| Space Requirement | Smaller | Slightly larger |
| Ideal For | Stable drilling | Complex/Heavy mud |
If the project requires efficient solids separation or deals with challenging mud properties, a double-layer design is often preferred.
6. Advantages Provided by TR Solids Control
- High-strength vibration motors
- API-compliant composite screens
- Adjustable screen deck angle
- Modular structure for easy integration
- Reliable after-sales service and parts supply
- Our double-layer units are widely used in domestic and international drilling projects.
7. Conclusion
A mud double-layer shale shaker provides enhanced separation, better drilling fluid quality, and stable performance under demanding conditions. Its dual-screen structure makes it an excellent choice for drilling contractors seeking efficient solids control and reduced mud consumption.
Shale Shaker Screen Types: Understanding the Options for Efficient Solids Control
Choosing the right shale shaker screen types is essential for achieving efficient solids control and stable drilling fluid performance. Different screens vary in structure, material, and mesh configuration, and each screen type serves specific drilling conditions. Understanding these differences helps operators select screens with better durability, separation accuracy, and cost-effectiveness.
1. Steel Frame Screens
Steel frame screens are widely used due to their sturdy construction.
Features: Strong metal frame; Suitable for high-load operations; Good torsional strength
Best for: Projects requiring strong support and stable performance under heavy solids flow.
2. Composite Frame Screens
Composite screens are becoming increasingly common in modern rigs.
Features: Lightweight composite material; Higher usable mesh area; Better corrosion resistance; Longer lifespan in harsh environments
Best for: Operators seeking improved durability and reduced screen replacement frequency.
3. Hook-Strip Screens
Hook-strip screens are easy to install and replace.
Features: Side-hook connection; Suitable for older shaker models; Cost-effective design
Best for: Rigs using hook-strip tensioning systems or requiring quick screen swaps.
4. Pretensioned Screens
Pretensioned screens offer stable mesh tension and improved separation.
Features: Factory-tensioned mesh; Consistent performance; Compatible with many modern shakers
Best for: Environments where fine solids removal is critical.
5. Dual-Layer and Triple-Layer Screens
These screens increase screening efficiency with multiple mesh layers.
Features: Multiple fine-mesh layers; Improved cuttings removal; Better handling of fine solids
Best for: Wells with high viscosity mud or fine solid content.
6. Specialty Screens
Some drilling sites require screens engineered for unique conditions.
Common variations include:High-temperature resistant screens; Anti-blocking screens; Corrosion-resistant screens
Best for: Unconventional wells or harsh environments requiring enhanced durability.
Conclusion
Understanding different shale shaker screen types helps drilling teams make informed decisions based on cost, performance, and durability requirements. By choosing appropriate screens—whether composite, steel frame, API-rated, or multi-layer—operators can achieve more stable solids control and reduce operational downtime.
Shale Shaker Maintenance Guide: Key Steps to Extend Equipment Life and Improve Stability
Routine shale shaker maintenance is crucial for ensuring stable operation during drilling activities. Proper maintenance reduces screen wear, prevents vibration faults, lowers downtime, and improves overall solids control performance. By following structured inspection steps and preventive measures, operators can significantly extend equipment life and maintain consistent mud treatment quality.
1. Regular Screen Inspection
- Look for tears, broken mesh, and loose edges
- Replace damaged screens promptly
- Ensure correct tensioning to avoid premature wear
Consistent screen maintenance improves separation accuracy and reduces unnecessary mud losses.
2. Check Vibration Motors
- Verify motor rotation direction
- Inspect eccentric weights and adjust if needed
- Monitor temperature and vibration noise
- Tighten electrical connections regularly
Keeping motors in good condition helps maintain stable G-force output.
3. Lubrication of Bearings
- Follow the manufacturer’s lubrication schedule
- Use recommended grease types
- Avoid over-lubrication, which may cause overheating
- Clean lubrication contributes to long service life and smoother motion.
4. Clean the Shaker Deck and Underside
- Remove leftover solids after shutdown
- Check for rust or damage
- Inspect rubber deck seals and replace when worn
- A tidy working surface enhances overall efficiency.
5. Check Structural Fasteners
- Inspect all bolts on the deck, skid, screen frame, and motors
- Re-torque according to recommended values
- Replace worn or corroded fasteners
Tightening fasteners prevents operational instability and unexpected shutdowns.
6. Monitor Mud Flow & Distribution
- Ensure the inlet pipe is centered
- Adjust weir height or flow control valves
- Check for blockage in the feed box
Balanced flow keeps the shaker performing at optimal efficiency.
7. Electrical System Inspection
- Safe and reliable electrical components are vital.
- Inspect cables for wear or moisture
- Check control panel functions
- Ensure proper grounding of the shaker
Stable electrical performance supports long-term reliability.
8. Keep Maintenance Records
- Record screen usage time
- Track motor service intervals
- Log lubrication activities
Good records improve maintenance planning and reduce downtime.
Conclusion
Implementing a proper shale shaker maintenance plan helps protect equipment, stabilize drilling fluid treatment, and lower operational costs. With consistent inspections and timely replacements, drilling teams can improve performance and maintain safer field operations.
Shale Shaker Performance Comparison: Understanding the Key Differences
Conducting a shale shaker performance comparison is essential for operators who want to improve drilling fluid treatment efficiency. By analyzing parameters such as G-force, screen area, deck design, vibration modes, and processing capacity, you can better understand how different shale shaker models behave in real-world drilling environments.
1. Vibration G-Force
G-force affects how effectively solids are conveyed across the screen.
- Higher G-force → stronger conveying power and better drying of cuttings
- Lower G-force → reduced motion, suitable for fragile screens or gentle operations
Shakers using adjustable G-force allow more flexible operation across various drilling conditions.
2. Screen Area & Layout
Screen area is a critical element in a shale shaker performance comparison.
- A larger screen area supports higher flow rate
- Optimized screen layout (single-layer or multi-layer) enhances separation quality
Some modern units use composite screens to increase usable area and extend screen life.
3. Deck Angle Adjustability
Deck angle determines fluid pool depth and cuttings movement speed.
- A steeper angle improves solids discharge
- A flatter angle increases fluid retention time
Shakers featuring quick manual or hydraulic angle adjustment provide better control over changing mud properties.
4. Vibration Mode: Linear vs. Balanced Elliptical
Different vibration modes influence separation performance:
- Linear motion → powerful conveying, ideal for heavy solids and high-volume mud
- Balanced elliptical motion → smoother movement, suitable for fine solids removal
Operators often compare these modes when selecting equipment for specific drilling applications.
5. Processing Capacity
Capacity is defined by how much mud the shaker can handle per hour. Key influencing factors:
- Screen API rating
- G-force output
- Flow distribution design
- Motor power
A clear performance comparison helps determine which model meets the required operational throughput.
6. Screen Type Compatibility
Screen performance directly affects the shaker’s efficiency. Common differences include:
- Composite vs. steel frame
- API mesh rating
- Panel support design
Choosing a shaker compatible with widely available screens reduces operating cost and improves flexibility.
7. Energy Consumption
Energy efficiency is becoming a key evaluation point.
- Motors with optimized power usage lower overall cost
- Efficient vibration mechanisms reduce wear and extend equipment life
This factor often separates older shakers from modern designs.
Conclusion
A well-structured shale shaker performance comparison provides clear insights into how different models operate and which parameters matter most for solids control. By evaluating screen area, vibration force, deck angle, capacity, and energy usage, drilling teams can select equipment that aligns with their mud characteristics and operational demands.
