10 Different Types of Shale Shakers Used in Drilling Rigs
In today’s oil drilling operations, the shale shaker is the first and most critical part of the 5-stage drilling fluid purification. Its main job is to quickly and effectively remove drill cuttings from the returning mud. This helps protect downstream equipment, improves fluid recycling, and lowers drilling costs. But here’s the catch—there are many types of shale shakers out there. Each one performs differently in terms of capacity, clog resistance, and maintenance. A poor choice can easily drag down your whole system’s efficiency.
It starts with the basic working principle of a shale shaker, then breaks down 10 common types based on screen structure, vibration mode, frequency control, and smart features. Whether you’re handling high-flow mud, HPHT wells, or aiming for dry discharge, this guide will help you choose the right shaker for your operation.
Basic Structure & Working Principle of a Shale Shaker

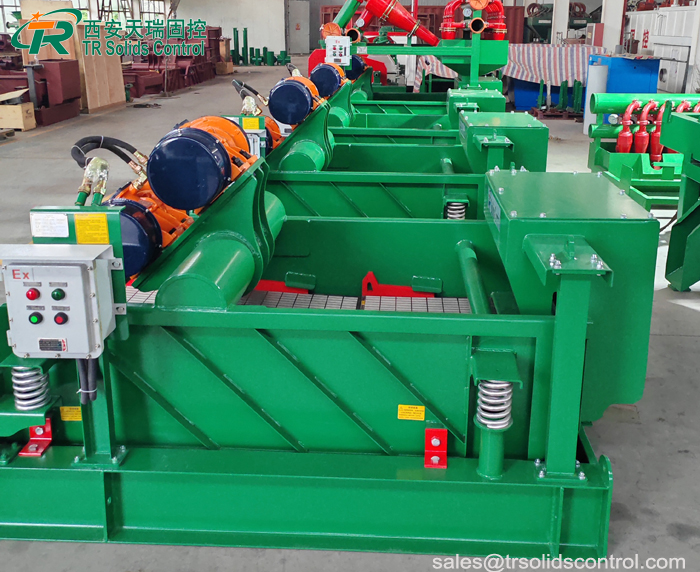

A typical unit consists of three primary components: the base (hopper), the screen basket, and the vibrator motor unit. Drilling fluid enters the system through the mud inlet line and is directed into the inlet tank, where it is evenly distributed onto the shaker screens mounted within the screen basket.
10 Different Types of Shale Shakers
- Single-Deck Shale Shaker
- Double-Deck Shale Shaker
- Triple-Deck Shale Shaker

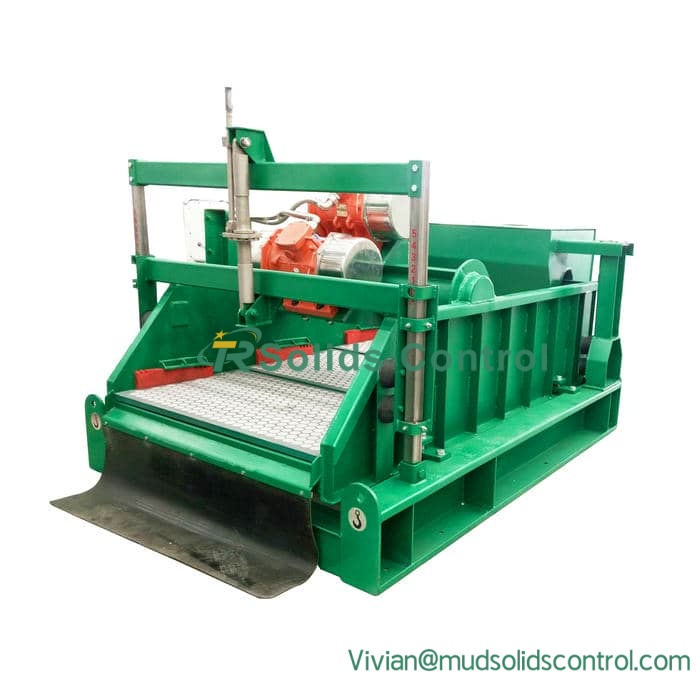

- Linear Motion Shale Shaker
- Elliptical Motion Shale Shaker
- Balanced Elliptical Motion Shale Shaker
- Dual-Motion Shale Shaker
- Fixed Frequency Shaker
- High-Frequency Shaker
- Variable Frequency Shaker (VFD-Controlled Shaker)
